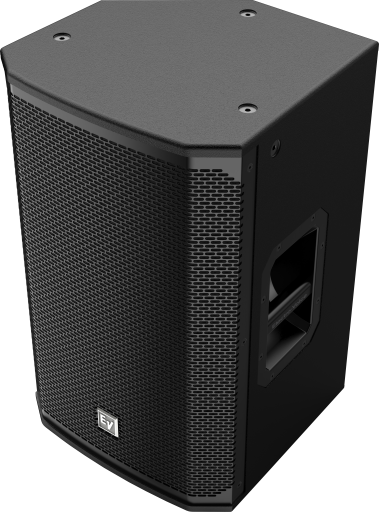

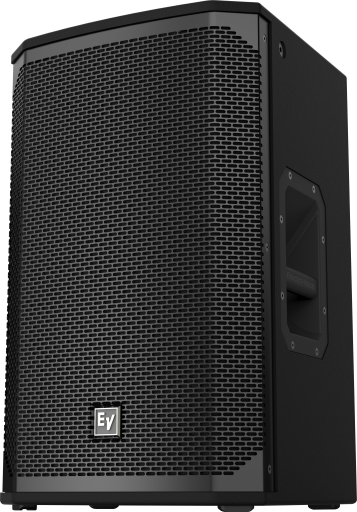

ELECTRO VOICE EKX-12 12" PASSIVE 2WAY SPEAKER - EKX-12
ELECTRO VOICE EKX-12 12" PASSIVE 2WAY SPEAKER - EKX-12
Precio habitual
$710.00 USD
Precio habitual
Precio de oferta
$710.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
- EKX-12: 1400 W (peak), 131 dB peak SPL utilizing high-sensitivity transducers designed and engineered by EV.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage.
- Lightweight, compact 15-mm wood enclosure with internal bracing, and durable EVCoat finish.
- Eight M10 threaded mounting points, aluminum pole mounts, and all-metal handles.
- 90˚ x 60˚ pattern for best coverage on mid-size stages. 40˚ monitor angle with rubber feet.
SPECIFICATIONS
| Frequency Range (-10 dB) | 55 Hz - 20 kkHz (Full Space Measurement) |
| Suspension | (8) M10 threaded mounting points |
| Minimum Impedance | 7.5Ω |
|
|
| HF Transducer | DH-1M 1-inch titanium compression driver |
| Speaker Type | Full-Range, two-way |
| Woofer Size | 12inch |
| Powered or Passive | Passive |
| Frequency Response (-3 dB)¹ |
82 Hz - 18 kHz (Full Space Measurement) |
| Max. SPL/1m (calc)² |
131dB |
| Coverage (Nominal -6 dB) H |
90° |
| LF Transducer | EVS-12M 300 mm (12 in) |
| Power Rating | 1400W |
| Crossover Frequency |
1.6 kHz |
| Connector Type | Dual NL4 |
| Enclosure Material |
15 mm, plywood with EVCoat |
| Grille | 18 AWG steel with powdercoat |
| Height | 23.9" (607mm) |
| Width | 14.76" (375mm) |
| Recommended High-Pass Frequency |
55Hz |
| Depth | 14.02" (356mm) |
| Weight Net | 38.36lbs (17.4kg) |
| Shipping Weight |
47.18lbs (21.4kg) |
| Family | EKX |
| Nominal Impedance |
8Ω |
| Axial Sensitivity (SPL, 1 W @ 1 m) | 95dB |
| Power Handling (Continuous / Peak) |
350 W/1400W |
| Maximum SPL | 131dB (Max. SPL is measured at 1m using broadband pink noise at rated pe-ak power rating) |
| Passive Power Handling |
1400W peak |
